SUMAC Closed Top Diked Above Ground Tanks for Flammable Liquids with UL, China Suppliers, Factory

Model	NW-1000	NW-2000	NW-4000
Material	Carbon steel	Carbon steel	Carbon steel
Tank type	Fuel Storage and transfer	Fuel Storage and transfer	Fuel Storage and transfer
Size	1145x1140x190mm	2280x1145x1290mm	2285x2215x1180mm
Volume	950/900L	3845/3653L	4068/3864litres
Empty Weight	420Kg	850	1250kg
Test pressure	DN40 or customerized	DN40 or customerized	About 35Kpa
Feed/Discharging	DN40 or customerized	DN40 or customerized	DN40 or customerized
Application	fuel, petrol, waste oil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature.			Waste fuel, petrol, waste oil, diesel, coolant, Any liquid, other than a flammable liquid under normal temperature.

NW-1000/2000/4000 Fuel tank Gasoline tank Spare container Anti-static liquid fuel tank Motorcycle car truck Fuel storage tank

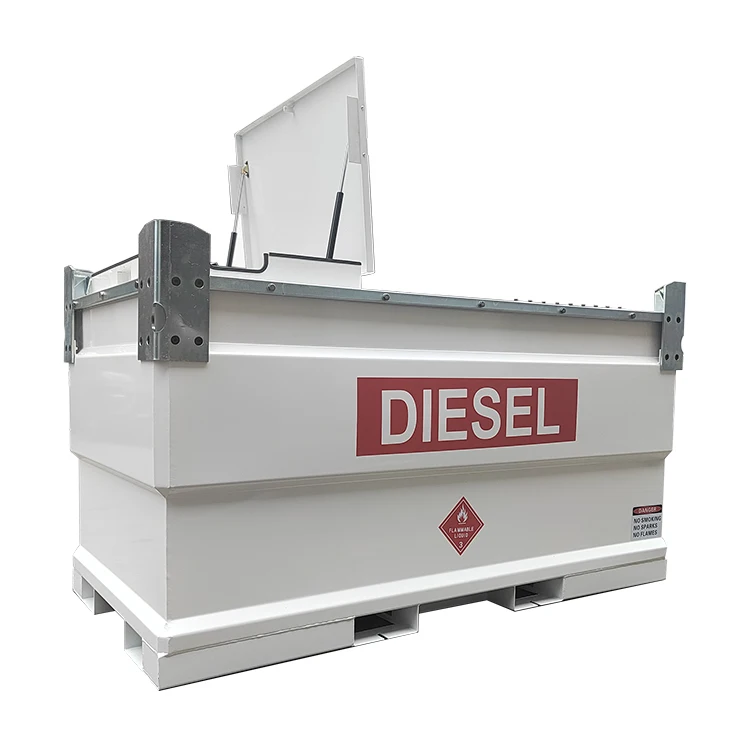

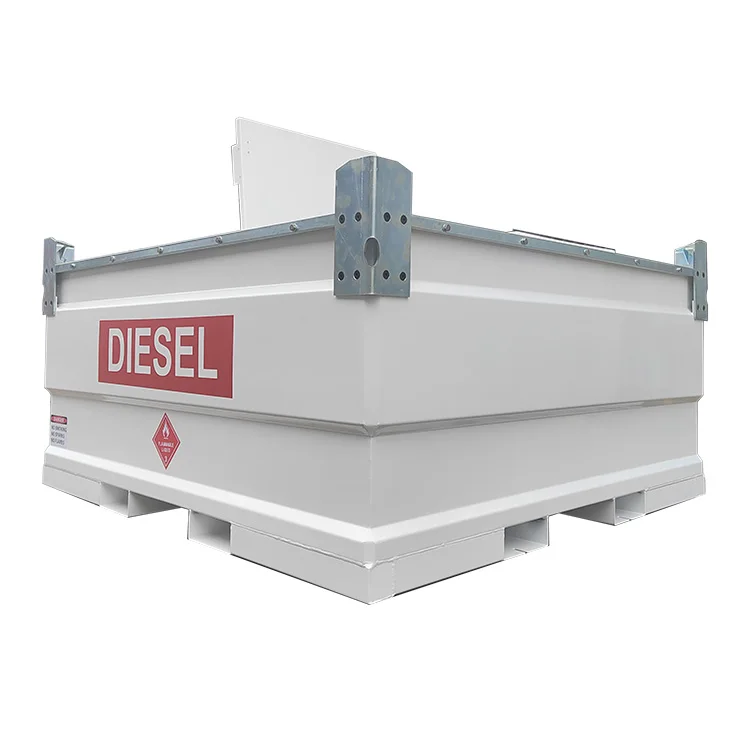

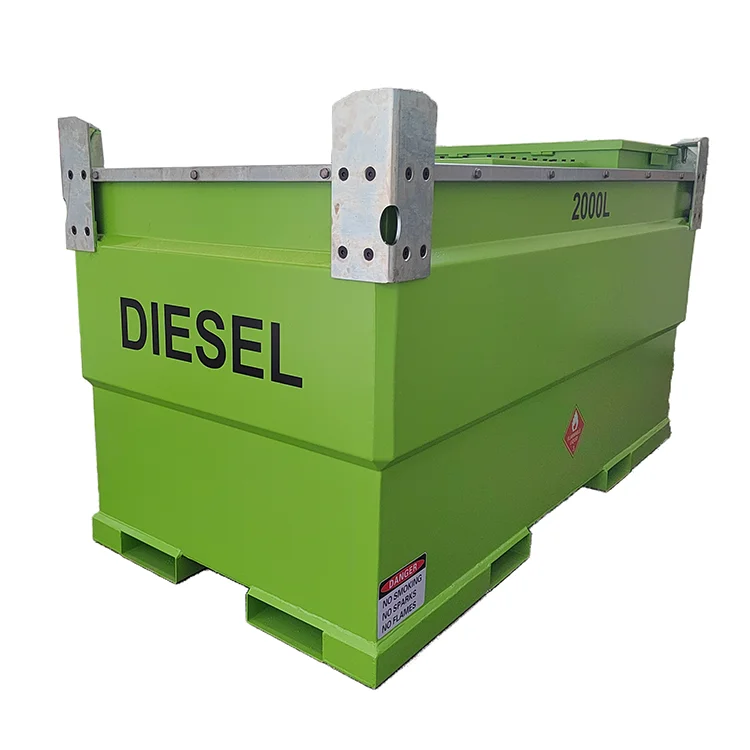

SUMAC NW Series "Cube Tank" are a solution for the storage and dispensing of diesel, gasoline and lubricant oils from 1000L to 10000L. NW Series tank offers a flexible solution to storing combustible liquid (Diesel, gasoline, oil, coolant, etc. ) , as well as improving fuel dispensing and management solutions, A practical stationary design ensures a fast, easy and convenient installation in any location, indoors or outdoors.

With its fully transportable design and ability to fuel multiple pieces of equipment simultaneously. A place, fill-and-pump installation process offering versatility and speed on commissioning, The freestanding “cube style” design allows for 360° tank viewing and inspection. High-grade powder coating paint finish ensures longer durability the elements. Durable stationary design with double-wall containment for added safety and security.

Comes With

· Meet strict quality standards, CE approved. · All seams are welded to exacting standards. · 4 Way forklift pockets. · The tanks fit with SUMAC supplied free vent, gravity outlet valve. · Stackable, and with 1pc lockable lids and maintenance hole. · Supplied with all required statutory decals. We can also customize logo according to customer needs. · Lockable containment area for pump, hose and nozzle storage. · Designed to be stacked for storage and can transport when empty or full oil. · Can be lifted via forklift to ensure ease of access and maneuverability, as well as lifting eyes at each corner. · Removable manhole - Easy maintenance and cleaning of carbon steel inner tank.

· Gravity outlet valve - DN50, NPT,UL listing

· Free Vent - DN50 NPT

· Manhole

· Galvanized Lifting Ear

Lockable cabinet

Optional Accessories

· Fuel Gauge

· Dipstick

· Farm

· Agriculture

· Power Plant

· Oil & Gas

· Earth-moving

· Desert

Q: What is your standard configuration for connections? A: Fill Dip,Inlet,Fuel Gauge,Outlet: DN40 E-Vent,FreVent: DN50

Q: Are your oil tanks rust-proof? A: Yes, our paint is electrostatic spraying of polyester powder, we called powder coating paint, oil resistance, antirust treatment. Q: Is the fuel tank easy for land transport? A: Yes. Q: Does the fuel tank has lockable cabinets for pump? A: Yes. Q: Can it come with fuel pump? A: Yes, we can equip with different kinds of fuel pump according to customer needs. Q: Is there any way to check for fluid between the skins (1st and 2nd layer)? A: Oil tank with inspection port. Q: Can you confirm if the tanks are supplied with, dip stick & the vent? A: Yes. The NW series tank is equipped with gravity outlet valve and free vent. You can choose dipstick or fuel gauge according to your needs. Q: Is there a suction tube on the outlet port for evac of the waste oil? A: Yes. Q: For the secondary sealing capacity, whether to increase the capacity of 10% on the basis of the inner tank capacity. A: Yes. Q: Is the tank easy to shipment? A: Yes, the height of our fuel tank is designed according to the size of the container and can be stacked. Q: Can the tank be customized? A: Yes, Sumac has a professional design and engineering team that can customize the tank according to customers requirements. Q: Can I do your agent in our country or some district? A: Yes, if you quantity is enough, no problem, the 40HQ container is okay. Q: How can I pay the money without risk? A: You can pay the money to us via Alibaba Trade Assurance,then the alibaba can guarantee your money safe and the delivery on time.
